Anti-MCM5 Picoband™ Antibody (monoclonal, 4G10)


  •  - Anti-MCM5 Picoband™ Antibody (monoclonal, 4G10) ABO15010
    Figure 2. IHC analysis of MCM5 using anti-MCM5 antibody (M03642-2).
    MCM5 was detected in paraffin-embedded section of human gallbladder adenocarcinoma tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 µg/ml mouse anti-MCM5 Antibody (M03642-2) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
    detail
  •  - Anti-MCM5 Picoband™ Antibody (monoclonal, 4G10) ABO15010
    Figure 3. IHC analysis of MCM5 using anti-MCM5 antibody (M03642-2).
    MCM5 was detected in paraffin-embedded section of human lung cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 µg/ml mouse anti-MCM5 Antibody (M03642-2) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
    detail
  •  - Anti-MCM5 Picoband™ Antibody (monoclonal, 4G10) ABO15010
    Figure 4. IHC analysis of MCM5 using anti-MCM5 antibody (M03642-2).
    MCM5 was detected in paraffin-embedded section of human pancreatic cancer tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 µg/ml mouse anti-MCM5 Antibody (M03642-2) overnight at 4°C. Biotinylated goat anti-mouse IgG was used as secondary antibody and incubated for 30 minutes at 37°C. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
    detail
  •  - Anti-MCM5 Picoband™ Antibody (monoclonal, 4G10) ABO15010
    Figure 5. IF analysis of MCM5 using anti-MCM5 antibody (M03642-2).
    MCM5 was detected in immunocytochemical section of A431 cells. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) for 15 mins. The cells were blocked with 10% goat serum. And then incubated with 5 µg/mL mouse anti-MCM5 Antibody (M03642-2) overnight at 4°C. DyLight®488 Conjugated Goat Anti-Mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution and incubated for 30 minutes at 37°C. The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
    detail
  •  - Anti-MCM5 Picoband™ Antibody (monoclonal, 4G10) ABO15010

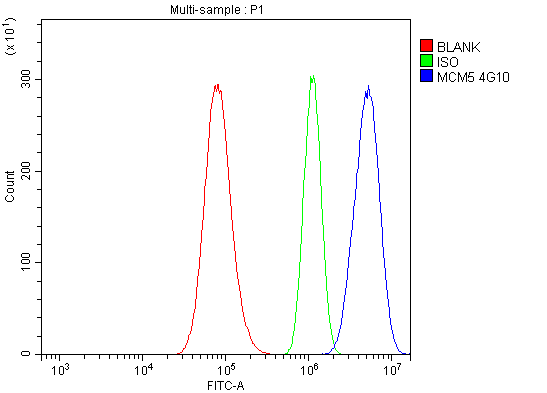

    Figure 6. Flow Cytometry analysis of A549 cells using anti-MCM5 antibody (M03642-2).
    Overlay histogram showing A549 cells stained with M03642-2 (Blue line).The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-MCM5 Antibody (M03642-2, 1 µg/1x106 cells) for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126, 5-10 µg/1x106 cells) was used as secondary antibody for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG (1 µg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
    detail
  •  - Anti-MCM5 Picoband™ Antibody (monoclonal, 4G10) ABO15010

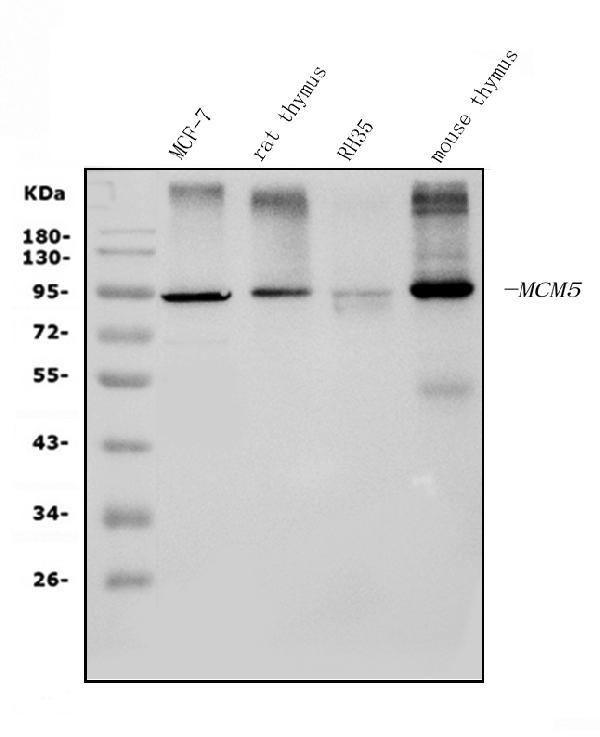

    Figure 1. Western blot analysis of MCM5 using anti-MCM5 antibody (M03642-2).
    Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 50ug of sample under reducing conditions.
    Lane 1: human MCF-7 whole cell lysates,
    Lane 2: rat thymus tissue lysates,
    Lane 3: rat RH-35 whole cell lysates,
    Lane 4: mouse thymus tissue lysates.
    After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1.5 hour at RT. The membrane was incubated with mouse anti- MCM5 antigen affinity purified monoclonal antibody (Catalog # M03642-2) at 0.5 µg/mL overnight at 4°C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-mouse IgG-HRP secondary antibody at a dilution of 1:10000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001) with Tanon 5200 system. A specific band was detected for MCM5 at approximately 95KD. The expected band size for MCM5 is at 95KD.
    detail
  • SPECIFICATION
  • CITATIONS
  • PROTOCOLS
  • BACKGROUND
  • detail
Product Information
Application
  • Applications Legend:
  • WB=Western Blot
  • IHC=Immunohistochemistry
  • IHC-P=Immunohistochemistry (Paraffin-embedded Sections)
  • IHC-F=Immunohistochemistry (Frozen Sections)
  • IF=Immunofluorescence
  • FC=Flow Cytopmetry
  • IC=Immunochemistry
  • ICC=Immunocytochemistry
  • E=ELISA
  • IP=Immunoprecipitation
  • DB=Dot Blot
  • CHIP=Chromatin Immunoprecipitation
  • FA=Fluorescence Assay
  • IEM=Immuno electron microscopy
  • EIA=Enzyme Immunoassay
WB, IHC, IF, ICC, FC
Primary Accession P33992
Host Mouse
Isotype Mouse IgG2a
Reactivity Rat, Human, Mouse
Clonality Monoclonal
Format Lyophilized
Description Anti-MCM5 Picoband™ Antibody (monoclonal, 4G10) . Tested in Flow Cytometry, IF, IHC, ICC, WB applications. This antibody reacts with Human, Mouse, Rat.
Reconstitution Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Additional Information
Gene ID 4174
Other Names DNA replication licensing factor MCM5 {ECO:0000303|Ref.3}, 3.6.4.12, CDC46 homolog, P1-CDC46, MCM5, CDC46
Calculated MW 95 kDa
Application Details Western blot, 0.25-0.5 µg/ml, Human, Mouse, Rat
Immunohistochemistry (Paraffin-embedded Section), 2-5 µg/ml, Human
Immunocytochemistry/Immunofluorescence, 5 µg/ml, Human
Flow Cytometry, 1-3 µg/1x10^6 cells, Human
Contents Each vial contains 4mg Trehalose, 0.9mg NaCl and 0.2mg Na2HPO4.
Clone Names Clone: 4G10
Immunogen E.coli-derived human MCM5 recombinant protein (Position: K206-H723).
Purification Immunogen affinity purified.
Storage Store at -20˚C for one year from date of receipt. After reconstitution, at 4˚C for one month. It can also be aliquotted and stored frozen at -20˚C for six months. Avoid repeated freeze-thaw cycles.
Protein Information
Name MCM5
Synonyms CDC46
Function Acts as a component of the MCM2-7 complex (MCM complex) which is the replicative helicase essential for 'once per cell cycle' DNA replication initiation and elongation in eukaryotic cells. Core component of CDC45-MCM-GINS (CMG) helicase, the molecular machine that unwinds template DNA during replication, and around which the replisome is built (PubMed:16899510, PubMed:32453425, PubMed:34694004, PubMed:34700328, PubMed:35585232). The active ATPase sites in the MCM2- 7 ring are formed through the interaction surfaces of two neighboring subunits such that a critical structure of a conserved arginine finger motif is provided in trans relative to the ATP-binding site of the Walker A box of the adjacent subunit. The six ATPase active sites, however, are likely to contribute differentially to the complex helicase activity (PubMed:32453425).
Cellular Location Nucleus. Chromosome. Note=Associated with chromatin before the formation of nuclei and detaches from it as DNA replication progresses.
Citations (0)
citation

Thousands of laboratories across the world have published research that depended on the performance of antibodies from Abcepta to advance their research. Check out links to articles that cite our products in major peer-reviewed journals, organized by research category.

Submit your citation using an Abcepta antibody to
info@abcepta.com, and receive a free "I Love Antibodies" mug.

Background

DNA replication licensing factor MCM5 is a protein that in humans is encoded by the MCM5 gene. It is mapped to 22q12.3. The protein encoded by this gene is structurally very similar to the CDC46 protein from S. cerevisiae, a protein involved in the initiation of DNA replication. The encoded protein is a member of the MCM family of chromatin-binding proteins and can interact with at least two other members of this family. The encoded protein is upregulated in the transition from the G0 to G1/S phase of the cell cycle and may actively participate in cell cycle regulation.
