PD1

Purified Mouse Monoclonal Antibody


  • E - PD1 AO2750a

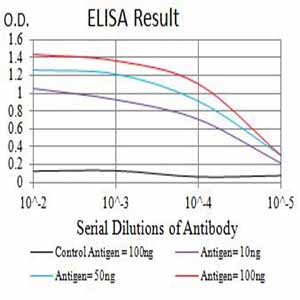

    Figure 1:Black line: Control Antigen (100 ng);Purple line: Antigen (10ng); Blue line: Antigen (50 ng); Red line:Antigen (100 ng)
    detail
  • WB - PD1 AO2750a
    Figure 2:Western blot analysis using PD1 mAb against human PD1 (AA: extra 21-170) recombinant protein. (Expected MW is 46.6 kDa)
    detail
  • WB - PD1 AO2750a
    Figure 3:Western blot analysis using PD1 mouse mAb against MOLT4 (1), K562 (2), Ramos (3), HL-60 (4), THP-1 (5), and U937 (6) cell lysate.
    detail
  • FCM - PD1 AO2750a
    Figure 4:Flow cytometric analysis of Hela cells using PD1 mouse mAb (green) and negative control (red).
    detail
  • SPECIFICATION
  • CITATIONS
  • PROTOCOLS
  • BACKGROUND
  • detail
Product Information
Application
  • Applications Legend:
  • WB=Western Blot
  • IHC=Immunohistochemistry
  • IHC-P=Immunohistochemistry (Paraffin-embedded Sections)
  • IHC-F=Immunohistochemistry (Frozen Sections)
  • IF=Immunofluorescence
  • FC=Flow Cytopmetry
  • IC=Immunochemistry
  • ICC=Immunocytochemistry
  • E=ELISA
  • IP=Immunoprecipitation
  • DB=Dot Blot
  • CHIP=Chromatin Immunoprecipitation
  • FA=Fluorescence Assay
  • IEM=Immunoelectronmicroscopy
  • EIA=Enzyme Immunoassay
WB, IHC, ICC, E
Primary Accession Q15116
Reactivity Human
Host Mouse
Clonality Monoclonal
Clone Names 1D6F6
Isotype Mouse IgG1
Calculated MW 31.6KD
Immunogen Purified recombinant fragment of human PD1 (AA: extra 21-170) expressed in HEK293 cells.
Formulation Purified antibody in PBS with 0.05% sodium azide
Additional Information
Gene ID 5133
Other Names PDCD1; PD-1; CD279; SLEB2; hPD-1; hPD-l; hSLE1
Dilution E~~ 1/10000
WB~~ 1/500 - 1/2000
FCM~~1/200 - 1/400
StorageMaintain refrigerated at 2-8°C for up to 6 months. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
PrecautionsPD1 is for research use only and not for use in diagnostic or therapeutic procedures.
Protein Information
Name PDCD1 {ECO:0000303|PubMed:7851902, ECO:0000312|HGNC:HGNC:8760}
Function Inhibitory receptor on antigen activated T-cells that plays a critical role in induction and maintenance of immune tolerance to self (PubMed:21276005). Delivers inhibitory signals upon binding to ligands CD274/PDCD1L1 and CD273/PDCD1LG2 (PubMed:21276005). Following T-cell receptor (TCR) engagement, PDCD1 associates with CD3-TCR in the immunological synapse and directly inhibits T-cell activation (By similarity). Suppresses T-cell activation through the recruitment of PTPN11/SHP-2: following ligand-binding, PDCD1 is phosphorylated within the ITSM motif, leading to the recruitment of the protein tyrosine phosphatase PTPN11/SHP-2 that mediates dephosphorylation of key TCR proximal signaling molecules, such as ZAP70, PRKCQ/PKCtheta and CD247/CD3zeta (By similarity).
Cellular Location Cell membrane; Single-pass type I membrane protein
Research Areas
Citations (0)
citation

Thousands of laboratories across the world have published research that depended on the performance of antibodies from Abcepta to advance their research. Check out links to articles that cite our products in major peer-reviewed journals, organized by research category.

Submit your citation using an Abcepta antibody to
info@abcepta.com, and receive a free "I Love Antibodies" mug.

References

1.PLoS One. 2016 Jul 26;11(7):e0159383.2.Tumour Biol. 2016 Jun;37(6):7507-14.
